The JUNT grooved piping system is one of the most advanced, versatile, economical and reliable systems available today.
Product Details
1) JunT part no. range: T02-xxx

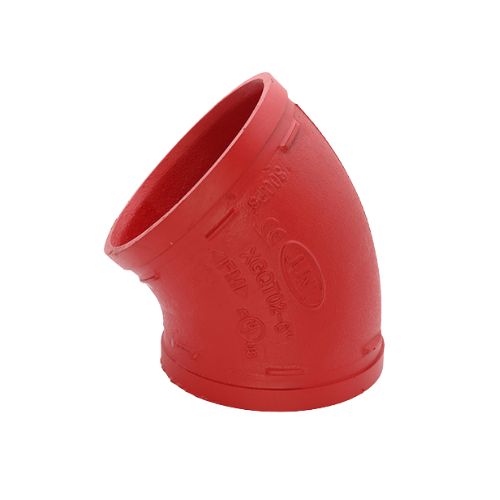

2) Grooved fitting – Manufacturer OEM part no. reference XGQT02 & XGQT04
3) Sizes available: 65, 80, 100, 150, 200, 250 mm (2½”, 3”, 4”, 6”, 8”, 10”)
4) Ductile iron construction – ASTM A536 GRADE 65-45-12
✔ The properties of Grade 65-45-12 ductile iron are as follows: 65,000 psi
(448 MPa) tensile strength, 45,000 psi (310 MPa) yield strength and
12% elongation.
5) FM, UL, CE, ISO, CUL CERTIFICATION – FM approvals certified to Original Equipment Manufacturers
specifications.
6) Colours available: Fire Red – RAL-3000
7) Pressure rating
✔ Up to 200mm – 20bar static (290PSI / 2000kPA)
✔ 200mm and bigger – 16bar static (232PSI / 1600kPA)
