The JUNT grooved piping system is one of the most advanced, versatile, economical and reliable systems available today.
Product Details
- JunT part no. range: T01-xxx- Short

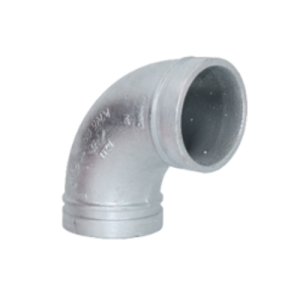

- Grooved fitting
- Sizes available: 50, 65, 80, 100, 150, 200, 250 mm (2”, 2½”, 3”, 4”, 6”, 8”, 10”)
- Ductile iron construction – ASTM A536 GRADE 65-45-12
- The properties of Grade 65-45-12 ductile iron are as follows: 65,000 psi (448 MPa) tensile strength, 45,000 psi (310 MPa) yield strength and 12% elongation.
- FM, UL, CE, ISO, CUL CERTIFICATION
- Colours available: Fire Red – RAL-3000, Galvanised
- Pressure rating
- Up to 200mm – 20bar static (290PSI / 2000kPA)
- 200mm and bigger – 16bar static (232PSI / 1600kPA)
